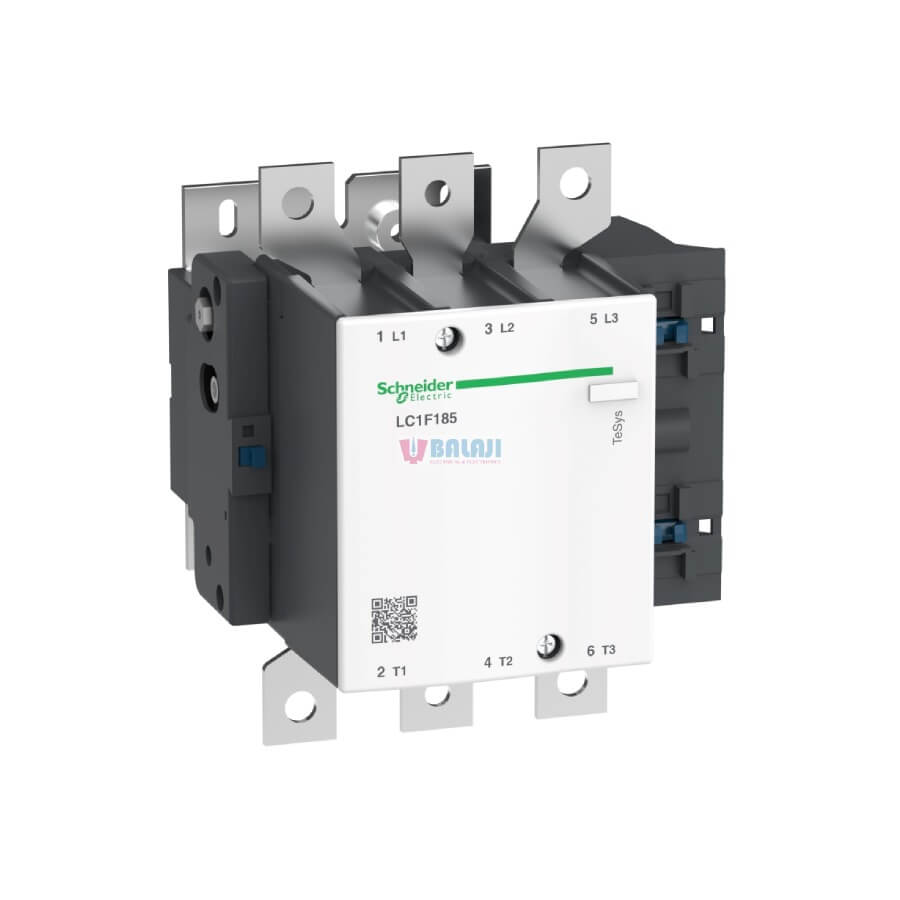

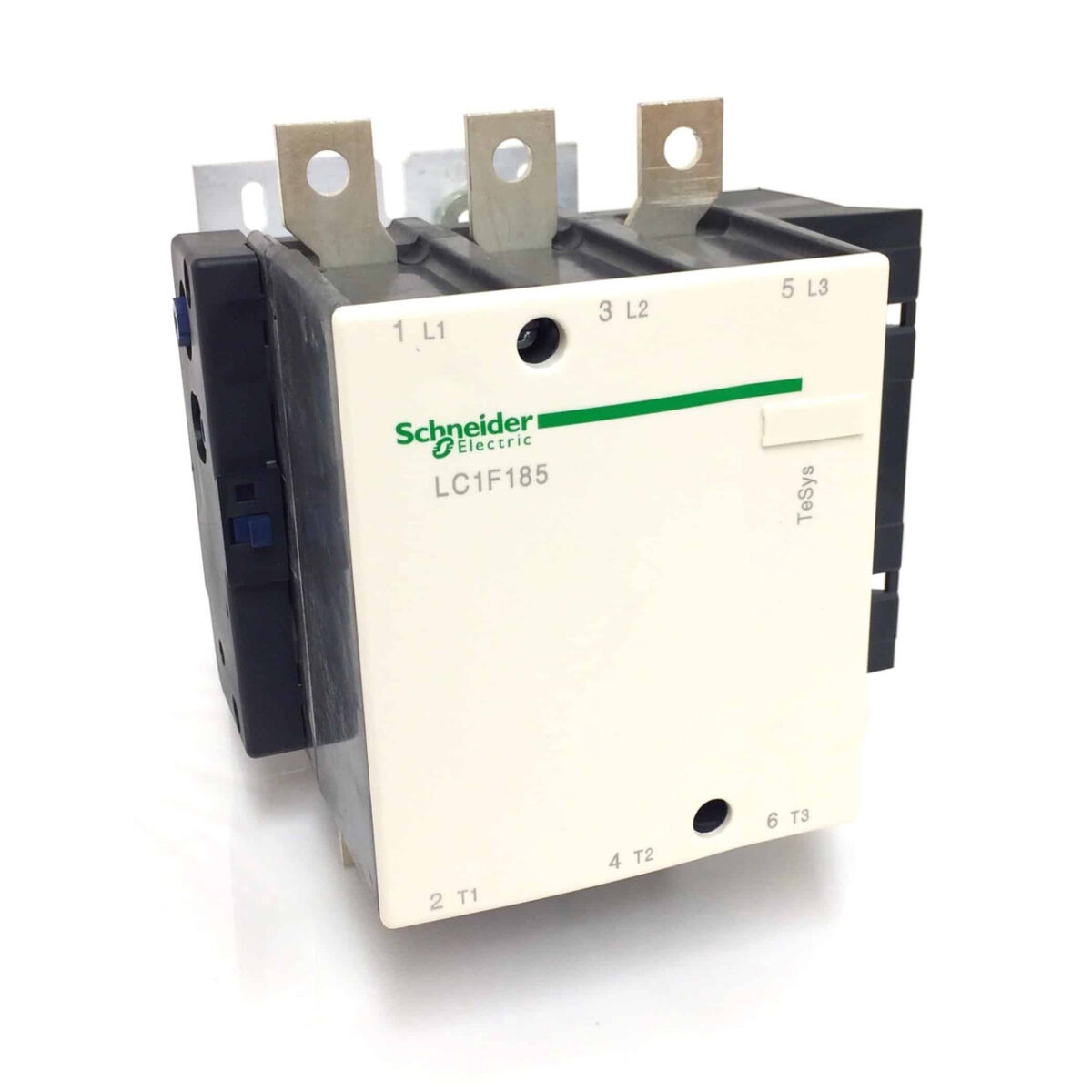

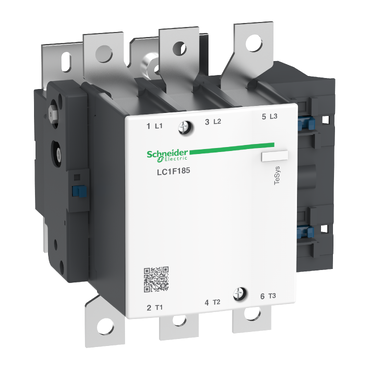

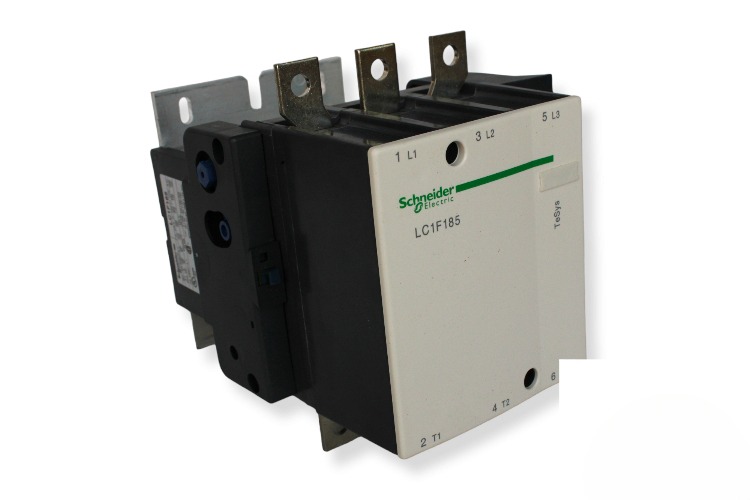

Schneider Electric Product name TeSys F LC1F 185 Contactor Body 3P-3-NO-440V-185A

Brand: Schneider Electric

Range : TeSys

Product name :TeSys F

Application : Motor Control

Product or component type : Contactor

Device short name: LC1F

Contactor application : Resistive load Motor control

Utilisation category :
AC-3
AC-4
AC-1

Poles description : 3P

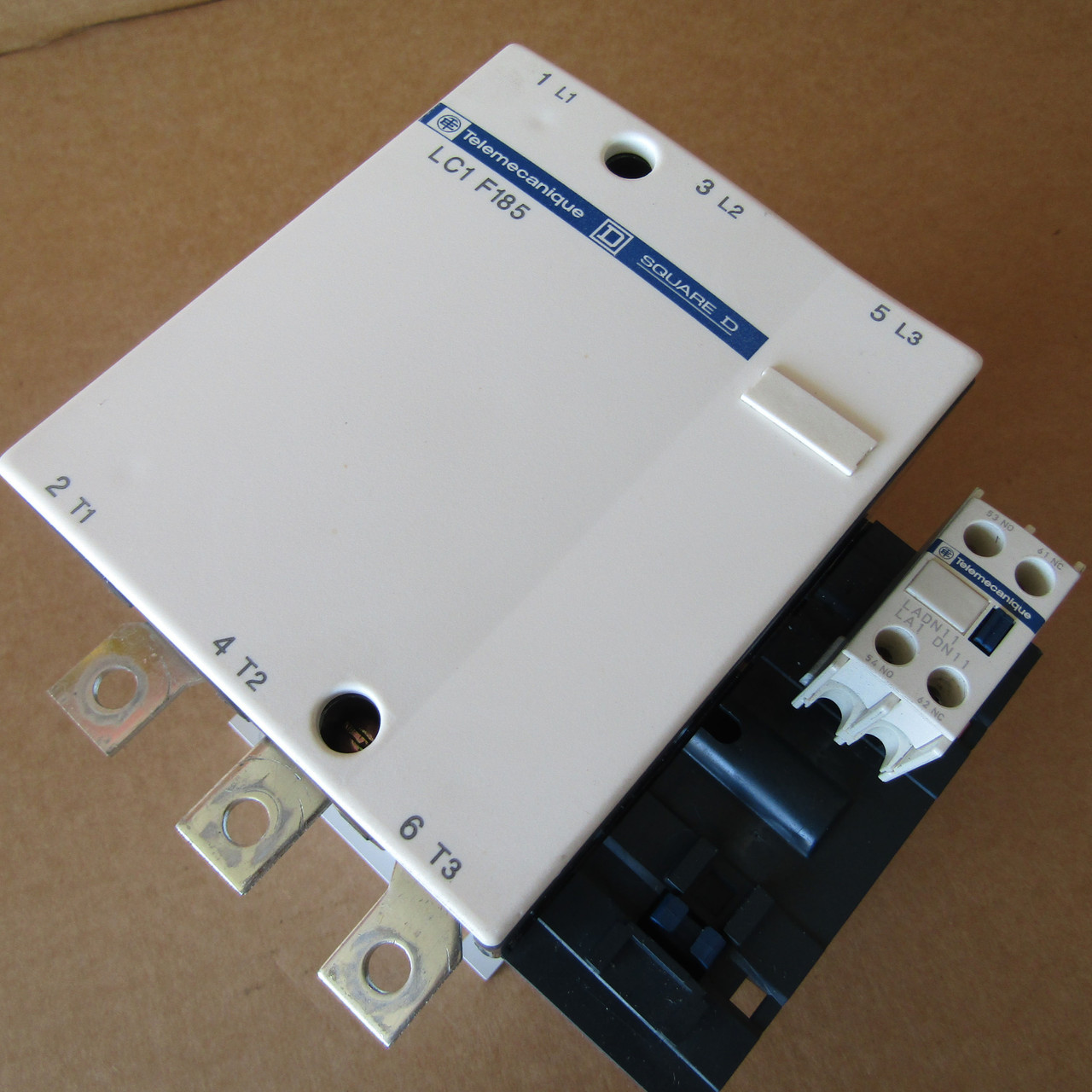

Main Pole Number : 2, 3 or 4. Labelled L1, L2, L3, L4 at the top, and T1, T2, T3, T4, at the bottom.

power pole contact composition : 3 NO

Rated operational voltage :
<= 690 V AC 50/60 Hz
<= 460 V DC

Rated operational current :
275 A (at <40 °C) at <= 440 V AC-1
185 A (at <55 °C) at <= 440 V AC-3

Motor power kW
100 kW at 415 V AC 50/60 Hz (AC-3)
100 kW at 440 V AC 50/60 Hz (AC-3)
110 kW at 500 V AC 50/60 Hz (AC-3)
90 kW at 380…400 V AC 50/60 Hz (AC-3)
55 kW at 220…240 V AC 50/60 Hz (AC-3)
110 kW at 660…690 V AC 50/60 Hz (AC-3)
33 kW at 400 V AC 50/60 Hz (AC-4)

Rated impulse withstand voltage : 8 kV

Overvoltage category : III

conventional free air thermal current : 275 A (at 40 °C)
