Schneider Electric LRD14 Overload Relay

Original price was: 25.00 $.Current price is: 12.00 $.

Details:

LRD thermal overload relays – 7…10 A – class 10A

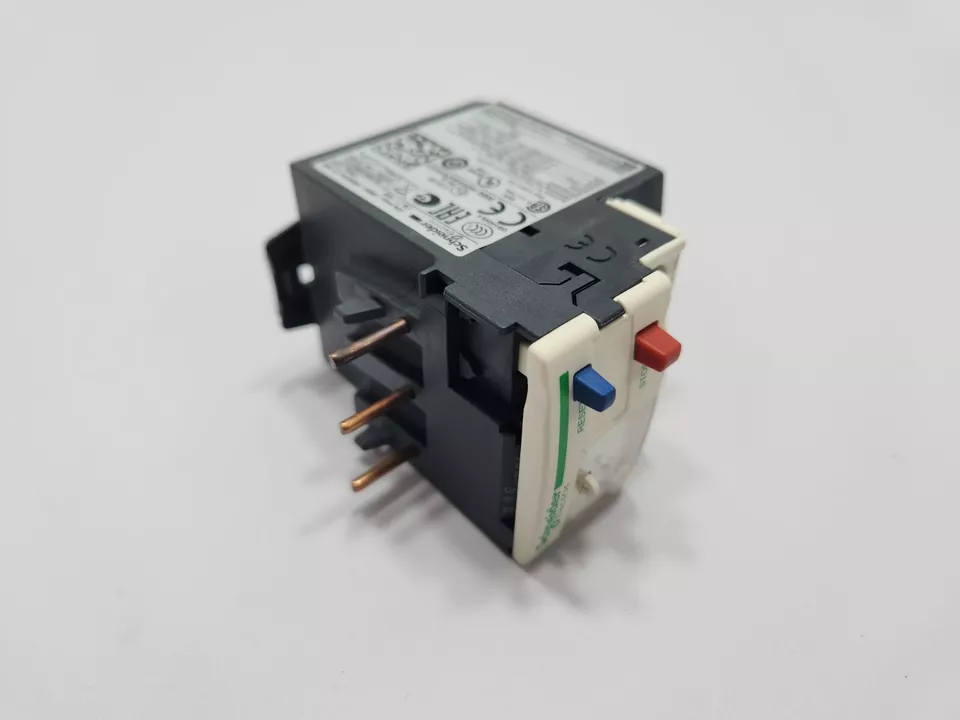

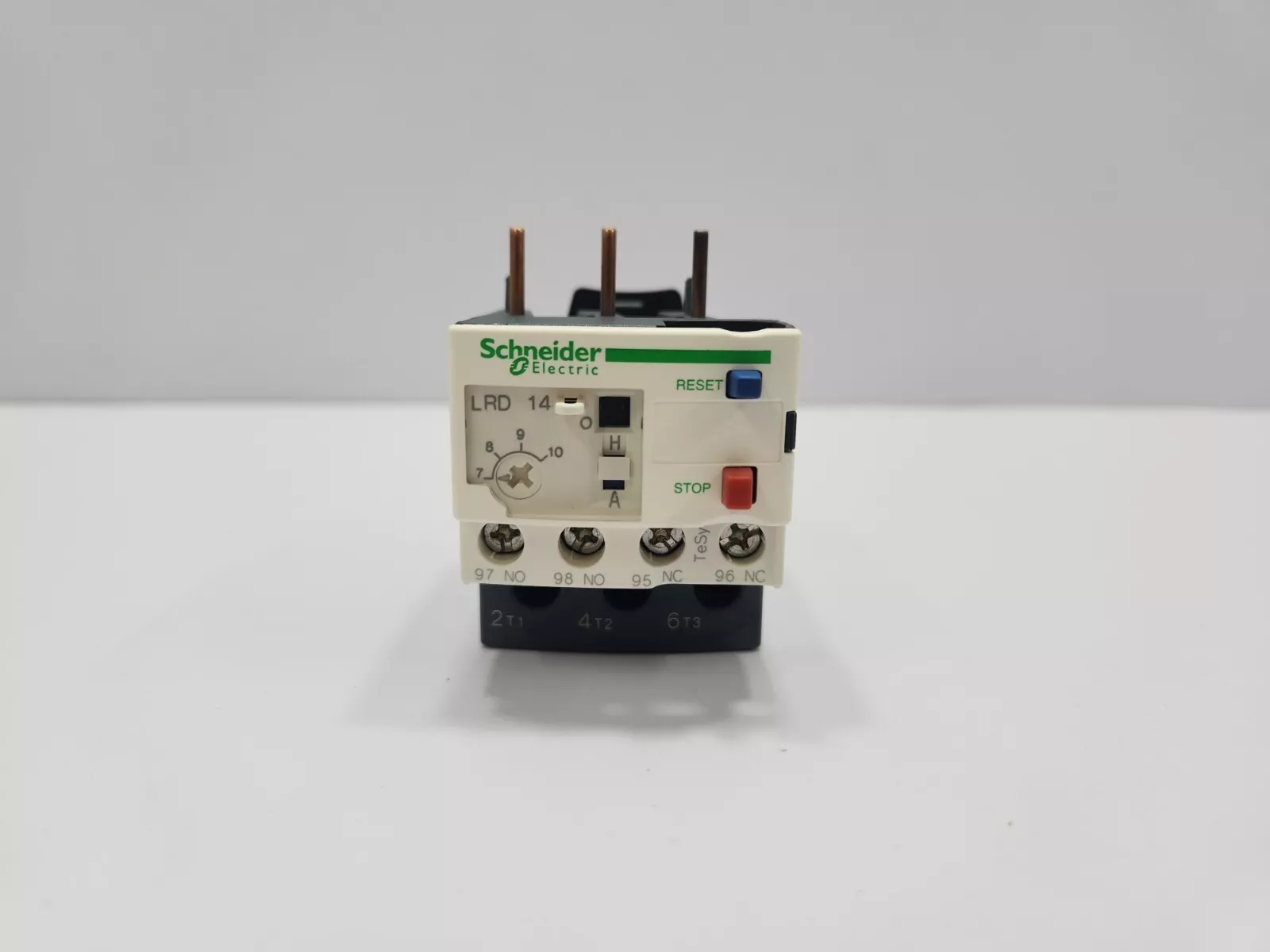

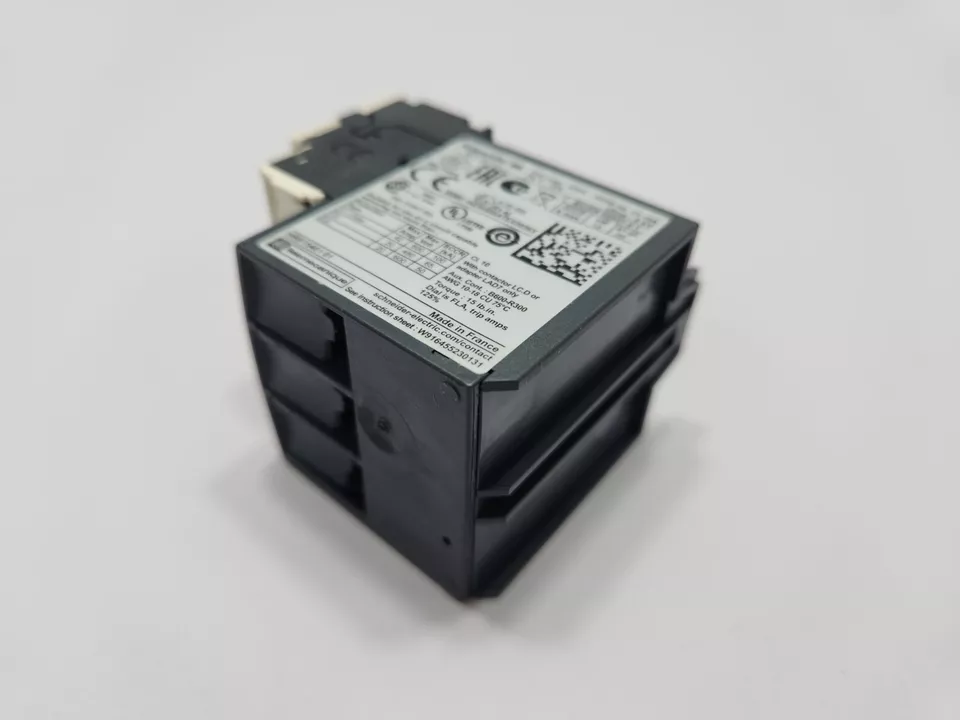

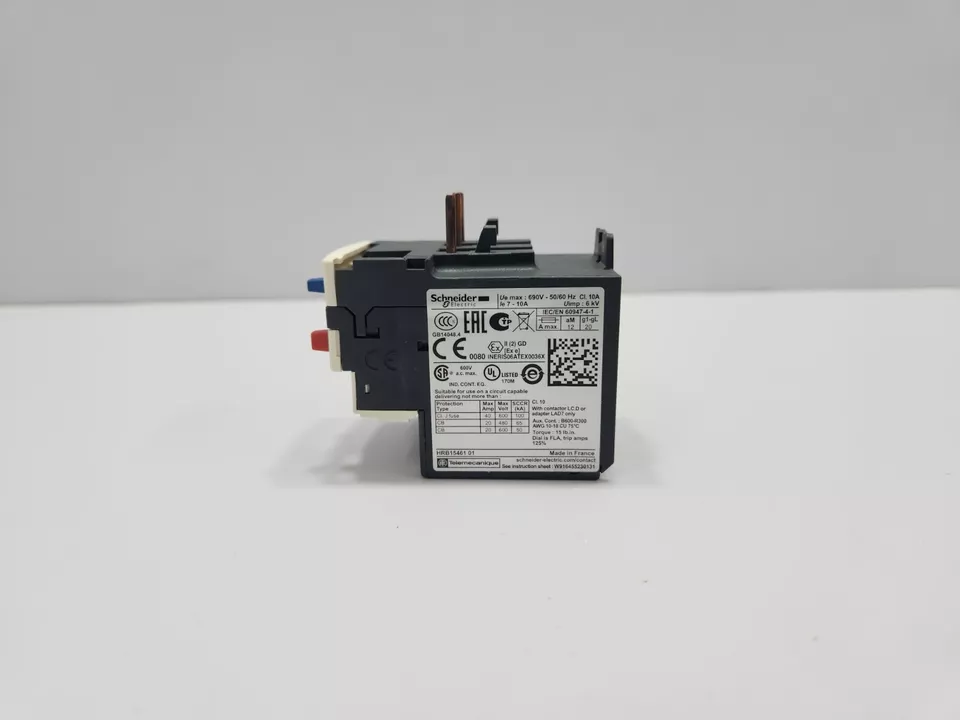

TeSys LRD thermal overload relay, 10A/690V, thermal setting range 7-10A, tripping class 10A, for protection of 3-phase motors 4kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for the simulation of tripping, reset, and stop buttons, a flag indicator, and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.

Weight 124 g
Dimensions 7 × 4.5 × 6.6 cm
Add to wishlist

Description

Range TeSys

TeSys Deca
Product name TeSys LRD

TeSys Deca
product or component type Differential thermal overload relay
Device short name LRD
relay application Motor protection
Product Compatibility LC1D09

LC1D12

LC1D38

LC1D32

LC1D25

LC1D18
Network type AC

DC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 7…10 A
[Ui] rated insulation voltage Power circuit: 600 V conforming to CSA

Power circuit: 600 V conforming to UL

Power circuit: 690 V conforming to IEC 60947-4-1



Network frequency 0…400 Hz
Mounting support Plate, with specific accessories

Rail, with specific accessories

Under contactor
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A for signalling circuit
Permissible current 3 A at 120 V AC-15 for signaling circuit

0.22 A at 125 V DC-13 for signaling circuit
[Ue] rated operational voltage 690 V AC 0…400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating 4 A gG for signaling circuit

4 A BS for signaling circuit
[Uimp] rated impulse withstand voltage 6 kV
Phase failure sensitivity Tripping current 130 % of Ir on two-phase, the last one at 0
Control type Red push-button: stop

Blue push-button: reset
Temperature compensation -20…60 °C
Connections – terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end

Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end

Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end

Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end

Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end

Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end
Tightening torque Control circuit: 1.7 N.m – on screw clamp terminals

Power circuit: 1.7 N.m – on screw clamp terminals
