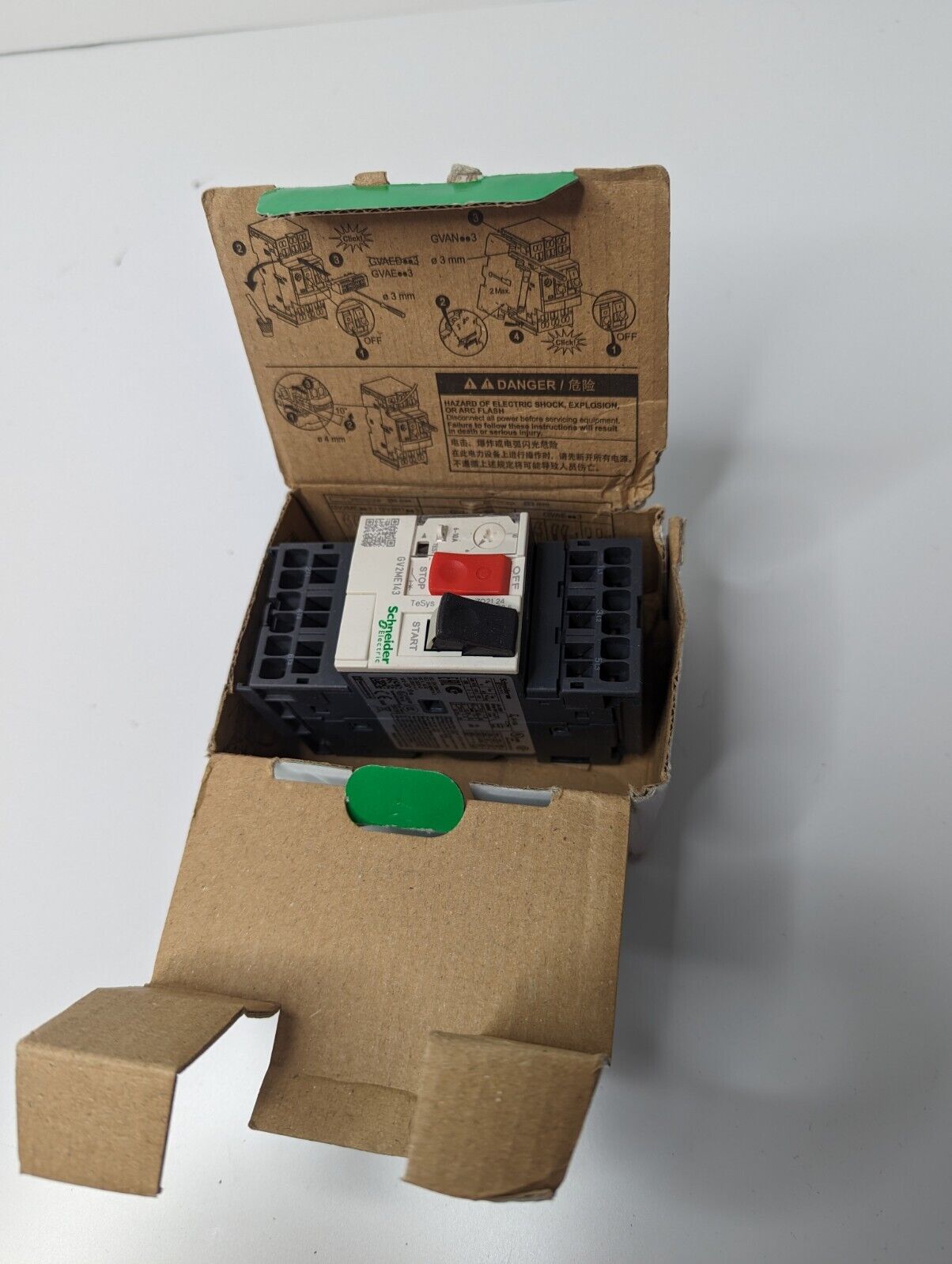

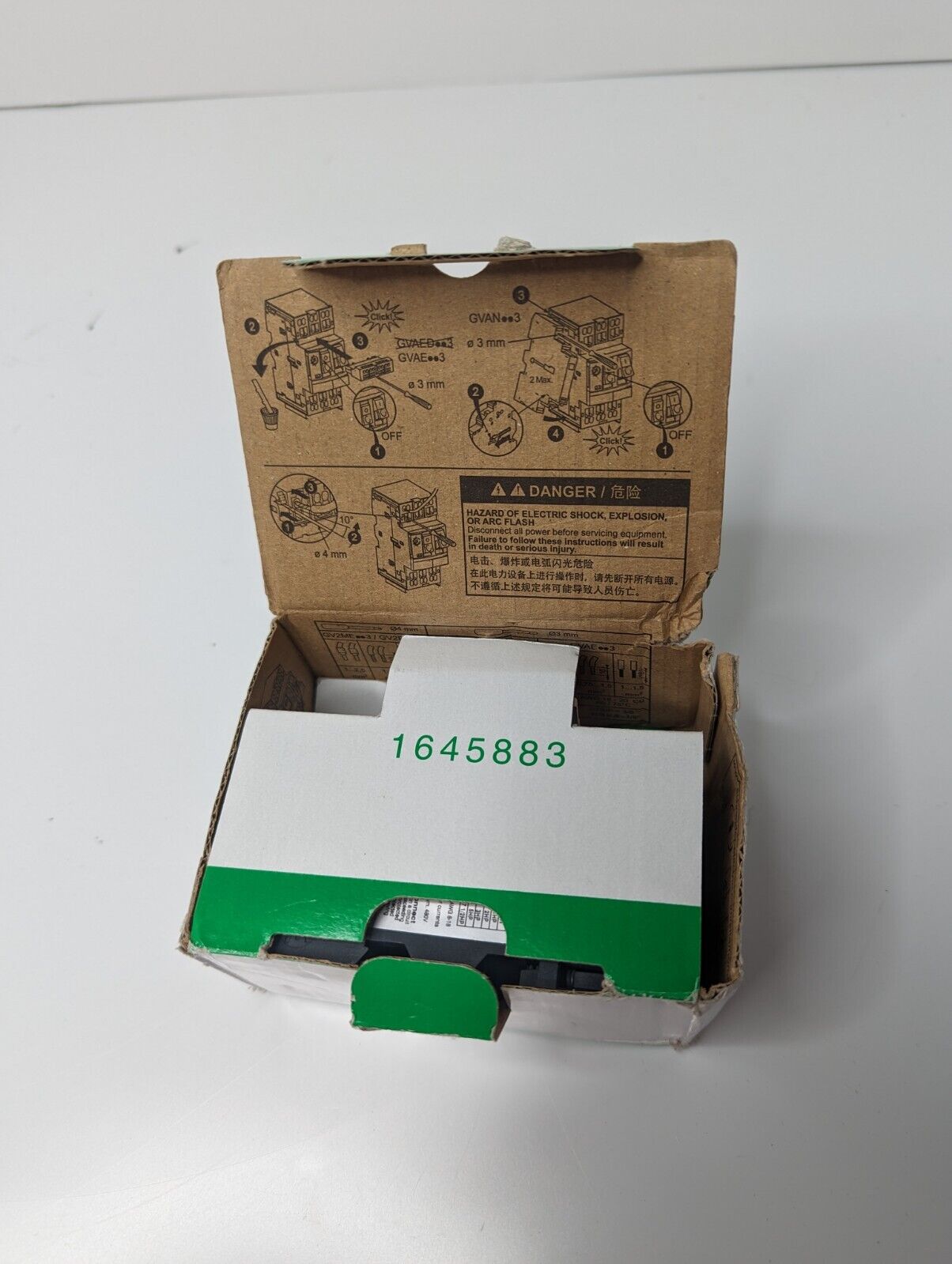

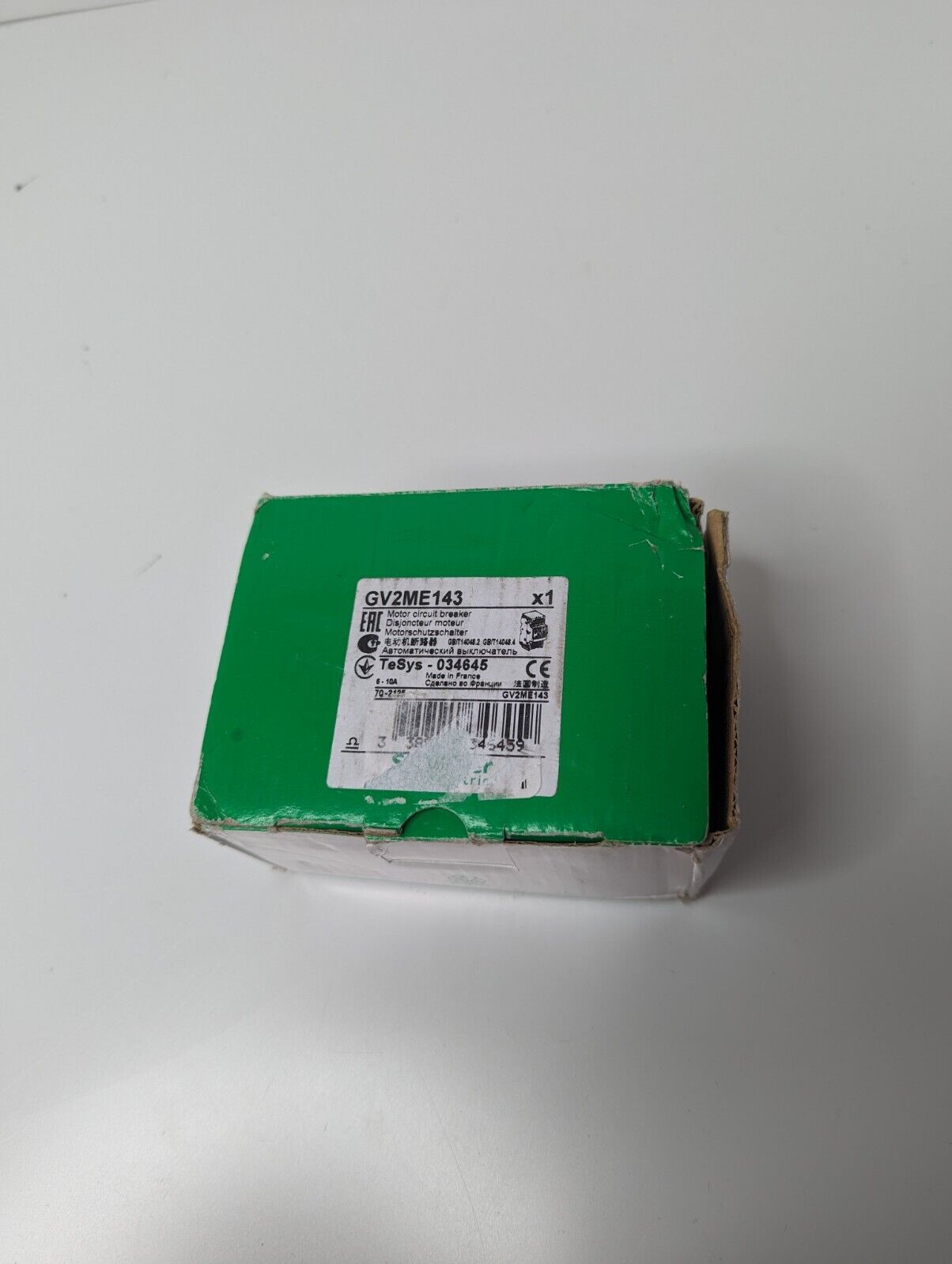

Schneider Electric GV2ME143 Motor circuit breaker

Original price was: 126.00 $.Current price is: 63.00 $.

Details:

TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides thermal-magnetic protection with a thermal setting range of 6-10A, magnetic tripping at 13xIn, and high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100,000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).



Add to wishlist

Description

Range TeSys Deca
Product name TeSys GV2

TeSys Deca
product or component type Motor circuit breaker
Device short name GV2ME
Device application Motor protection
Trip unit technology Thermal-magnetic



Poles description 3P
Network type AC
Utilisation category Category A conforming to IEC 60947-2

AC-3 conforming to IEC 60947-4-1

AC-3e conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Fixing mode 35 mm symmetrical DIN rail: clipped

Panel: screwed (with adaptor plate)
Motor power kW 3 kW at 400/415 V AC 50/60 Hz

4 kW at 400/415 V AC 50/60 Hz

4 kW at 500 V AC 50/60 Hz

5.5 kW at 500 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2

75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
[In] rated current 10 A
Thermal protection adjustment range 6…10 A conforming to IEC 60947-4-1
Magnetic tripping current 138 A
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-4-1
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In

100000 cycles for AC-3e at 415 V In
Rated duty Continuous conforming to IEC 60947-4-1
