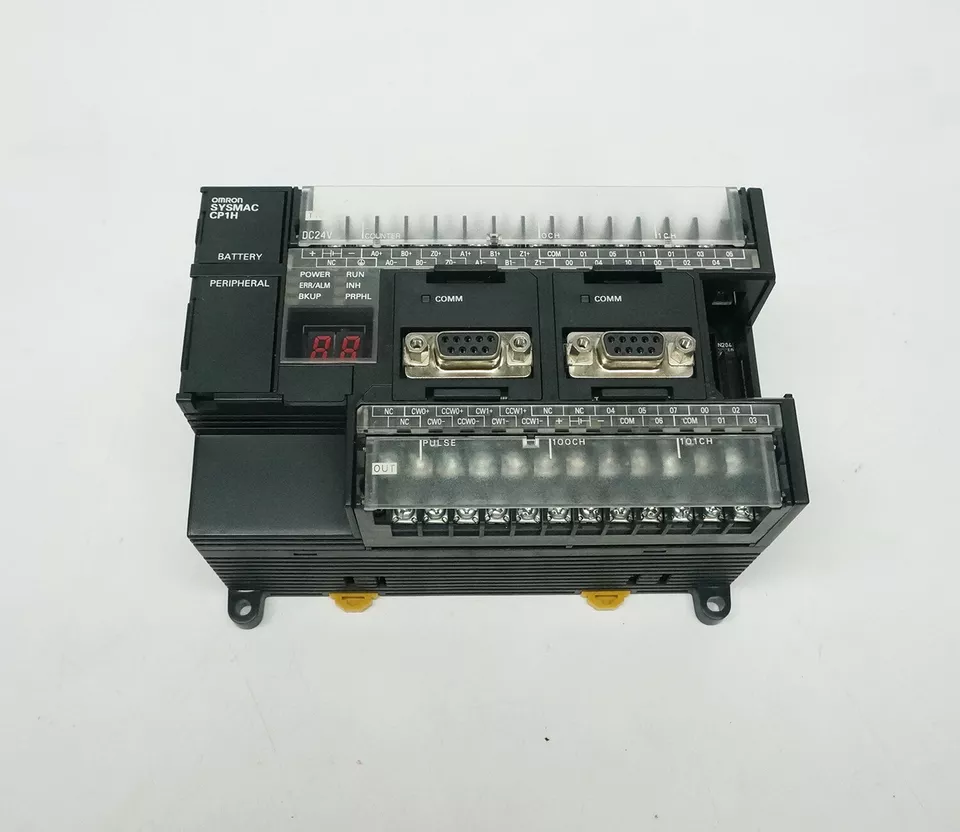

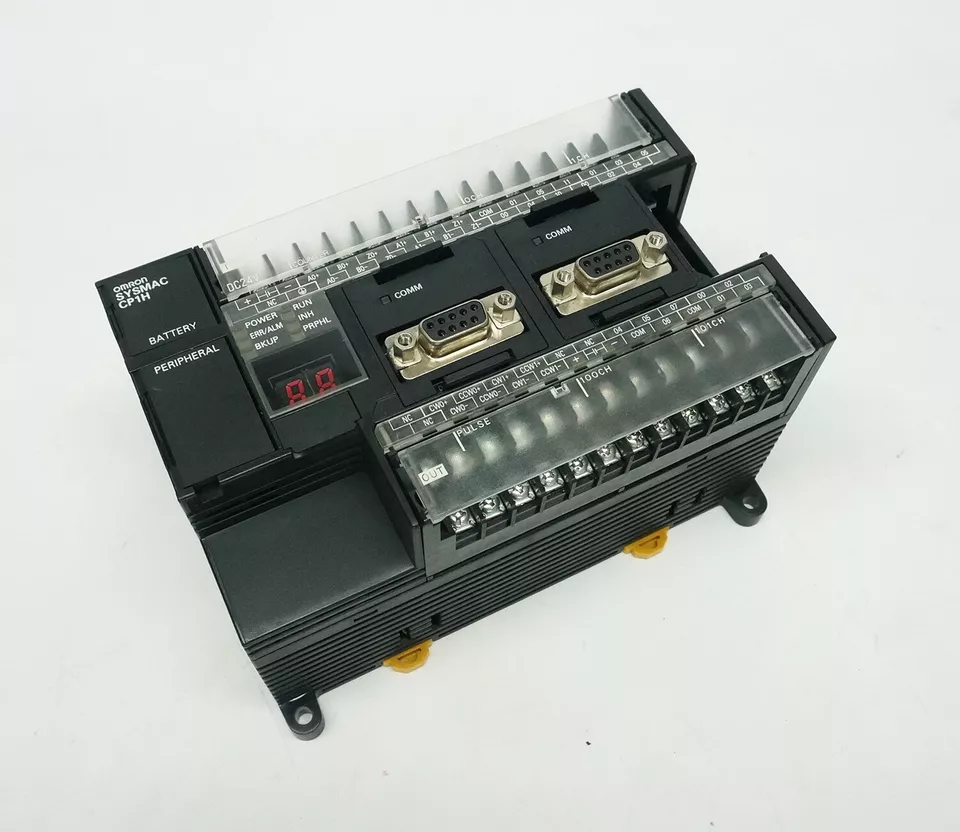

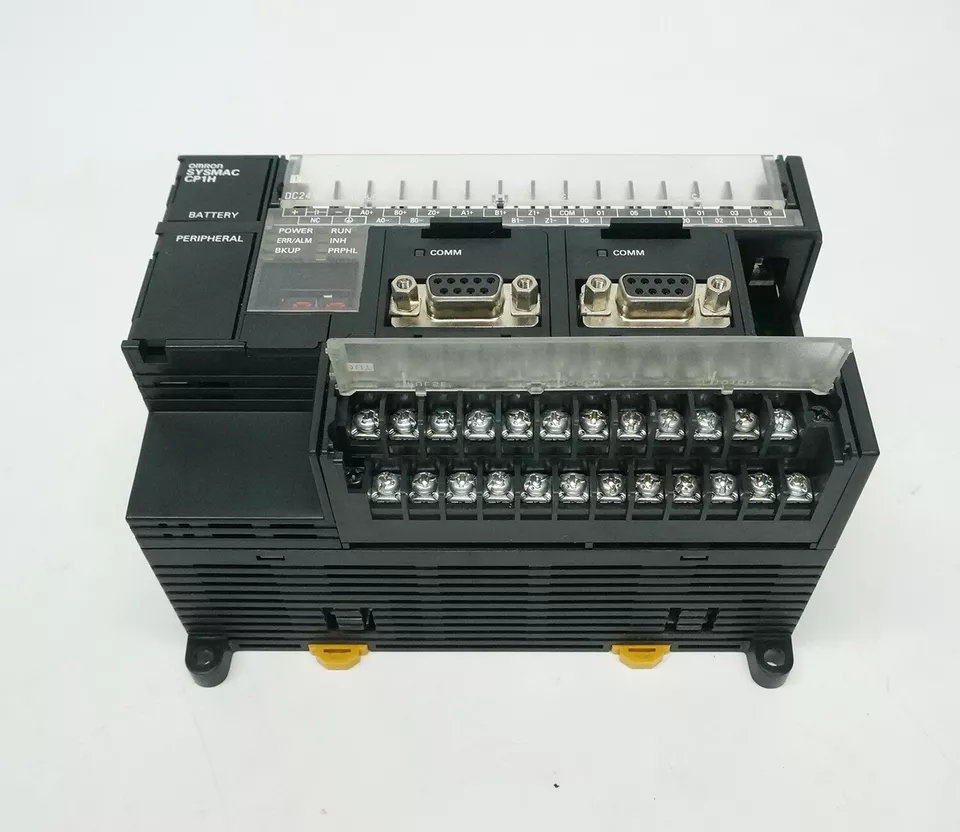

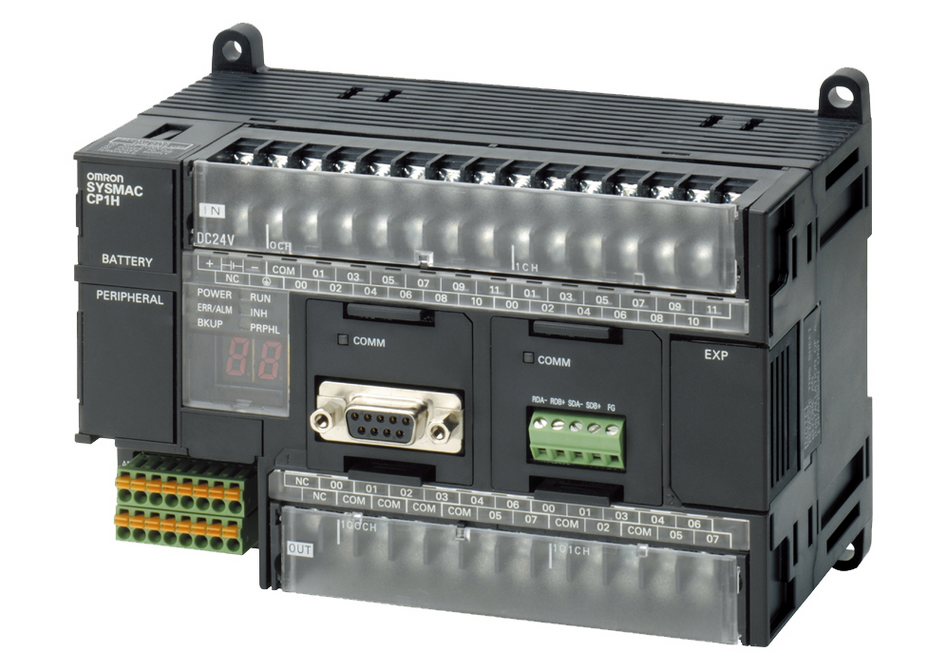

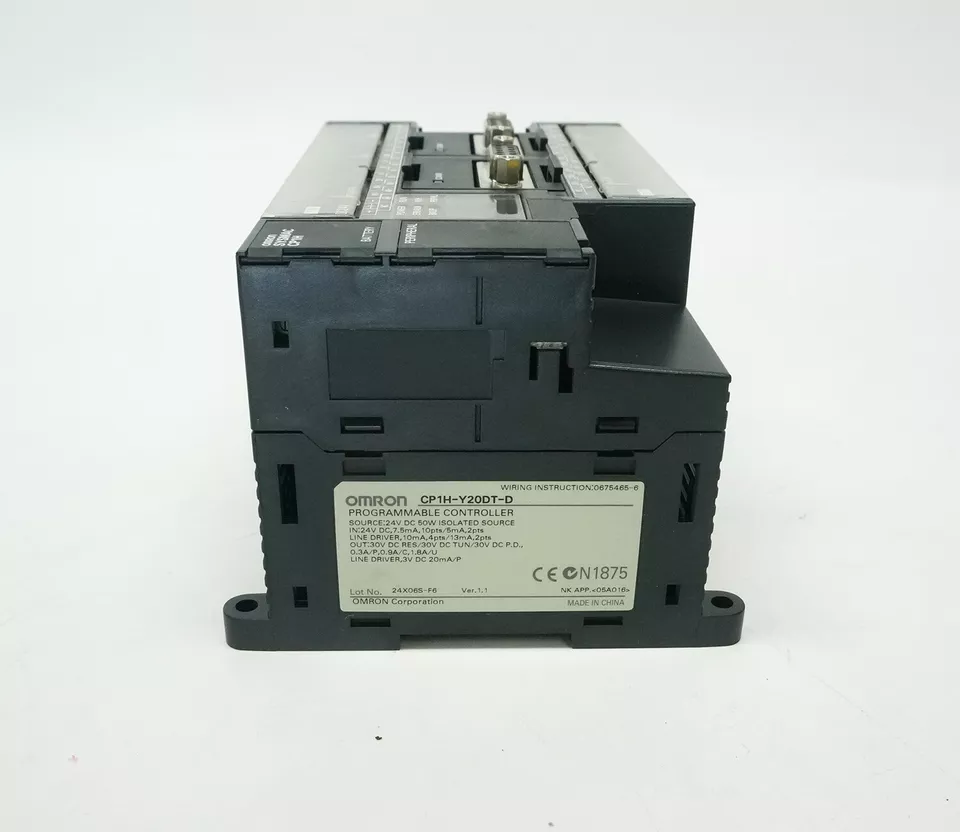

Omron Sysmac CP1H Position Control and Comprehensive Programmable Controller

Original price was: 300.00 $.Current price is: 150.00 $.

Details:

Pulse output is available for 4 axes, providing advanced power for high-precision positioning control.
High-speed counters and differential phases for 4 axes, simplifying multi-axis control with a single unit.
Eight interrupt inputs are included for faster processing, speeding up the system significantly.
Serial communications with two ports, allowing for RS-232C or RS-485 communications with Option Boards.
Ethernet Communications are enabled by an Option Board, with two ports for Ethernet communications between the CP1H and a host computer.
Built-in Analog I/O with XA CPU Units offering 4 input words and 2 output words.
The structured text (ST) language for easier math operations.
Compatible with CP1W series and CJ series Units, with excellent extensibility.
LCDs and settings enabled with an Option Board.

Mounting Type	DIN Rail
Output Type	Analog
Ambient storage temperature	-20 degrees to 75 degrees
Power holding time	10 ms min.
Ambient humidity	10% to 90%
Power consumption	100 VA max
Frequency	50/60 Hz
Power supply	100 to 240 VAC
