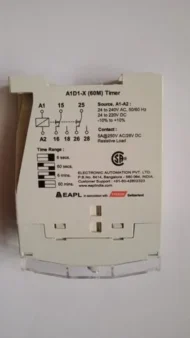

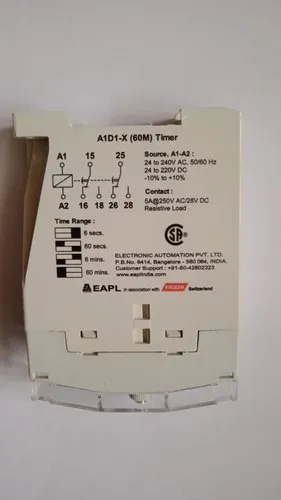

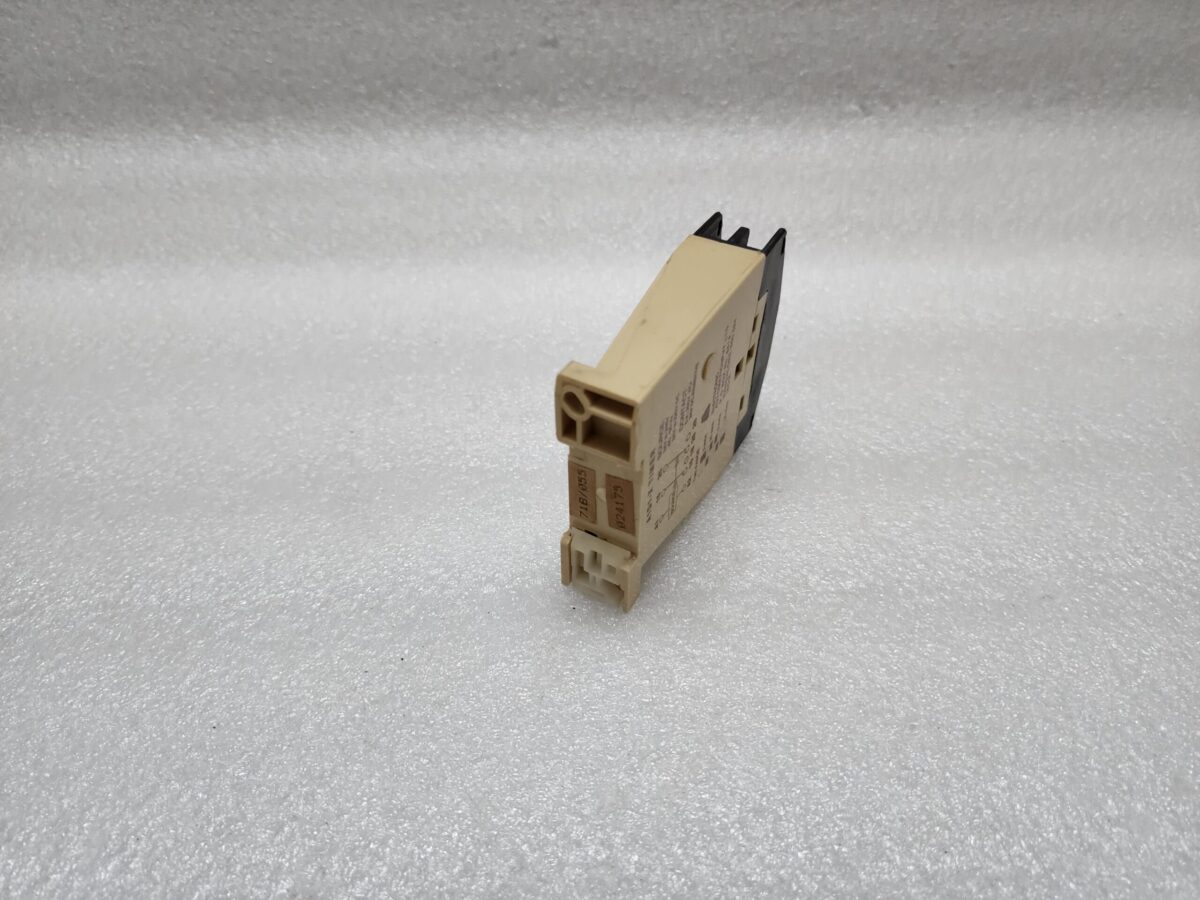

EAPL A1D1-X 60 M Electronic Timer

Product Details :

Function

A1D1-X (60M) is an ON Delay Timer. On the Power application, preset timing starts and at the end of the timing 2C/O relay contacts change over and remain in this state till the power is interrupted.

 Contact Rating

• Terminal block
• Slide switches for range selection
• Relay status LED
• Time Tuning Pot
• Range Viewing Window

Programmed Instruction

• Select the range with the help of 2 slide switches on the side panel. The selected range can be seen in the windows on the front panel.
• Set the required time by gently rotating the Front pot with a suitable screwdriver. Apply rated voltage across A1 and A2 terminals.
• The LED glows and the time starts. After the set time the LED goes off and relay contact changes from NC to NO.
• Relay contacts remain in the same position, till power is interrupted.

Caution

• Do not change the time range & set time while the timer is in operation.
• Switch off the power while changing the time range and set time.
• Application of voltage other than the specified one will permanently damage the timer.
• Do not forcibly rotate the pot. It will damage the timer.

Source (A1-A2)

• 24 To 240V AC, 50/60Hz
• 24 To 220V DC, -10% To +10%

Contact

• 250 V AC/28 V DC Resistive Road

Time Range

• 6 to 60 Sec
• 6 to 66 mins
